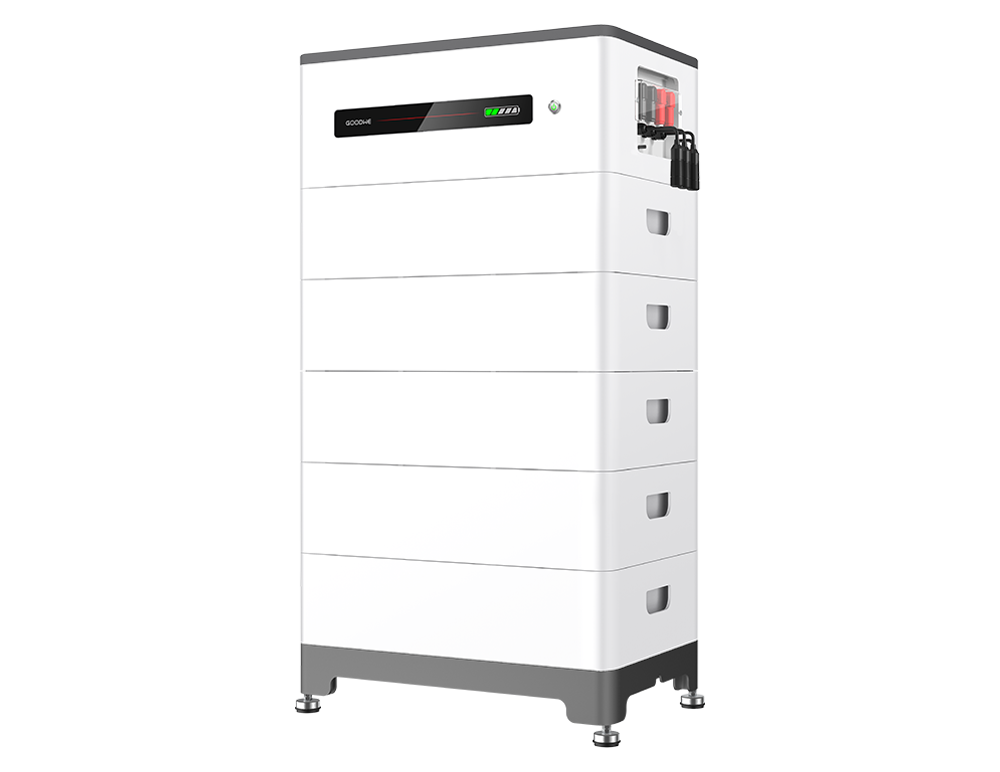

Model | LX F6.6-H | LX F9.8-H | LX F9.8-H | LX F16.4-H |
---|---|---|---|---|
Rated Energy(kWh)* | 6.55 | 9.83 | 13.10 | 16.38 |
Usable Energy (kWh)* | 6.55 | 9.83 | 13.10 | 16.38 |
Battery Module | LX F3.3-H: 102.4V 3.27kWh | |||
Number of Modules | 2 | 3 | 4 | 5 |
Cell Type | LFP (LiFePO4) | |||
Cell configuration | 64S1P | 96S1P | 128S1P | 160S1P |
Rated Capacity(Ah) | 32 | |||
Nominal Voltage (V) | 204.8 | 307.2 | 409.6 | 512 |
Rated DC Power(kW)* | 5.12 | 114 kg | 171 kg | 228 kg |
Operating Voltage Range (V) | 182.4 ~ 230.4 | 273.6 ~ 345.6 | 364.8 ~ 460.8 | 456 ~ 576 |
Max. Charging/Discharging Current (A)* | 25 | |||
Max. Charging/Discharging Power (kW) | 6.1 | 9.2 | 12.2 | 15.3 |
Fault current(A) | 3000 | 4600 | 3500 | 3000 |
Operating temperature | Charge: 0 ~ +50; Discharge: -20 ~ +50 | |||
Relative Humidity | 0~95% | |||
Max. Operating Altitude (m) | 2000 | |||
Communication | CAN | |||
Weight (kg) | 115 | 158 | 201 | 244 |
Dimensions (W × H × D mm) | 600 × 610 × 380 | 600 × 765 × 380 | 600 × 920 × 380 | 600 × 1075 × 380 |
Ingress Protection Rating | IP55 | |||
Mounting Method | Grounded | |||
Warranty | 10 Years (Performance Warranty) / 10 Years (Product Warranty) | |||
Standards and Certification Safety EMO Transportation |
IEC62619, IEC62040, VDE2510-50, CEC CE, RCM UN38.3 |
