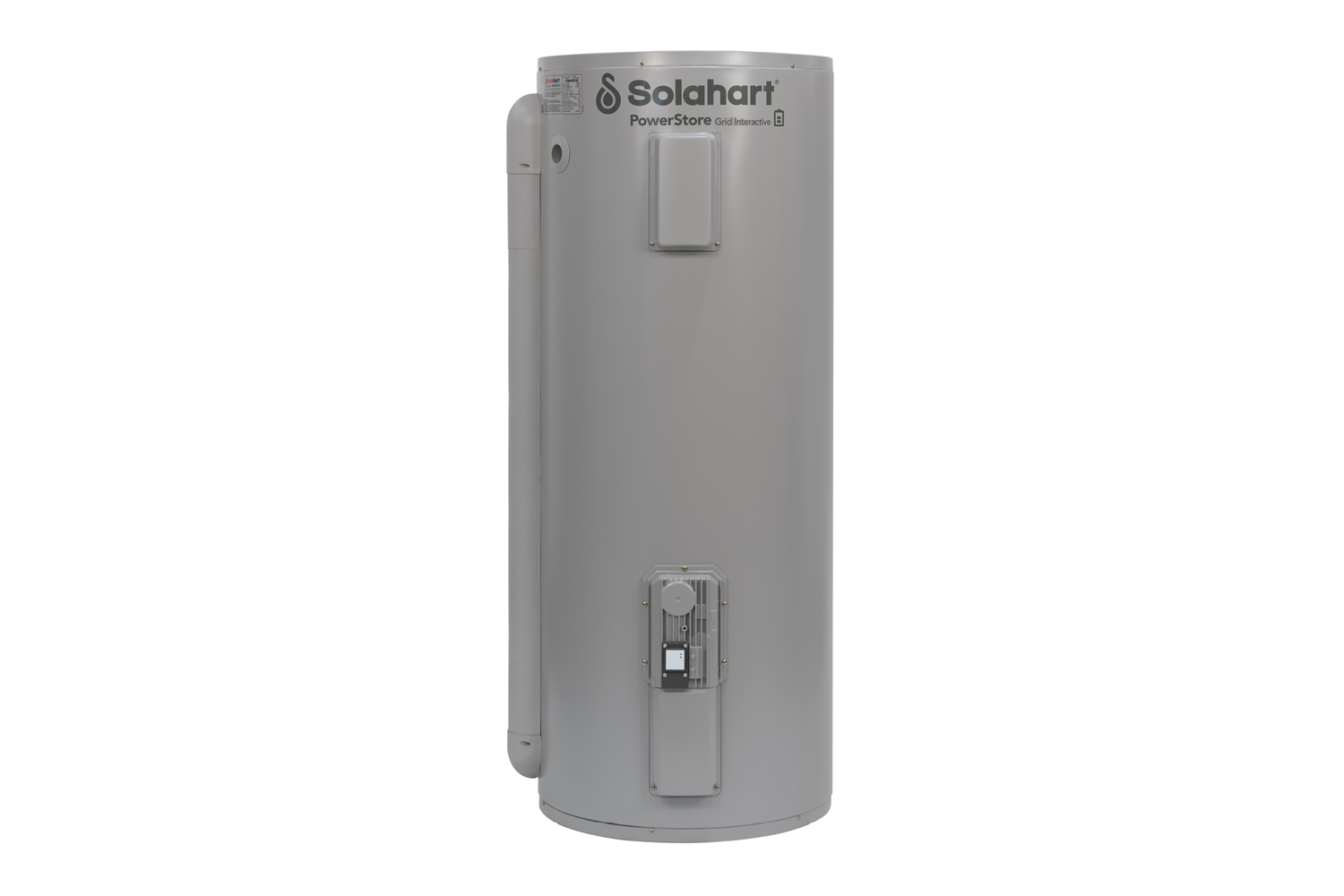

Why choose Solahart PowerStore®

Control

Maximise your solar power and stop worrying about low feed-in tariffs

Assurance

Trust Solahart. Australia’s solar energy experts for over 65 years

Affordable Energy Storage

Get the benefits of home energy storage for a lower cost than a batter

Solahart Warranty

Rest easy with a 10-year tank warranty for extra peace of mind

Make the most of your sunshine

If the power generated from your solar panels isn’t used immediately, it’s sent back to the grid. Solahart PowerStore® is designed to intelligently harvest this excess power to generate hot water.

Conventional electric water heaters draw maximum power when their heating element is switched on. This usually happens in the morning and evening when solar panels are not fully productive, so hot water is mainly heated by power from the grid rather than using solar energy. PowerStore® monitors your electricity usage during the day and then diverts any excess solar power that is not being used by household appliances towards your water heater, rather than allowing it to be fed back into the grid.





# Solahart Warranty Details: 10/3/3 warranty. 10-year cylinder supply, 3-year cylinder labour, 3-year parts supply including labour; applies to a single family domestic dwelling only. For full details see Owner’s Guide & Installation Instructions.



Tank model 250E5X 315E5X 270RMX36G 320RMX36G
Solahart Warranty 10/3/3* 10/3/2*
Installation Indoor/Outdoor
Hot water delivery (L) 250 315 250 315
Boost capacity (L) 50 136 162
Weight empty (kg) 82 92 82 92
Weight full (kg) 352 417 352 417
Dimensions H x W x D (mm) 1395 x 640 x 680 1640 x 640 x 680 1395 x 640 x 680 1640 x 640 x 680
50℃ Limited Hot Water Outlet Yes No



Heating unit type
Top Copper sheath immersion element 3.6 kW
Bottom Triple-blade variable power copper sheath immersion element, max 3.6kW
Supply voltage 240 V  50 Hz
Water Supply
TPR Valve Setting (kPa) 1000
ECV setting (kPa) 850
Max. supply pressure with ECV (kPa) 680
Max. supply pressure without ECV 800
Min. supply pressure (kPa) 200
Water connections Hot and Cold Rp 3/4



Dimensions
A 1395 1640 1395 1640
B 640 640 640 640
C 705 705 705 705
D 1109 1317 1112 1317
E 73 113 73 113
F 103 103 103 103
G 988 1228 596 720
H 32° 32° 32° 32°
J 88° 88° 88° 88°
K 705 705 N/A N/A
L 262 262 N/A N/A



*Solahart Warranty Details: PowerStore: 10/3/3 warranty; 10-year cylinder supply, 3-year cylinder labour, 3-year parts supply including labour; applies to a single-family domestic dwelling only. For full details see Owner’s Guide and Installation Instructions. Solar Ready: 10/3/2 warranty; 10-year cylinder supply, 3-year cylinder labour, 2-year parts supply including labour; applies to a single-family domestic dwelling only. All other applications have a 3/1/1 warranty; 3-year cylinder supply, 1 year parts supply, 1 year labour.



What Makes Solahart PowerStore So Smart?

PowerStore® uses world-leading smart technology developed, designed and built in Australia.

A specially designed two-stage water heater ensures quick recovery and reliable supply by maintaining a reserve of hot water even on
cloudy days.

An innovative variable-power heating unit is designed to claw-back excess solar power rather than sending it back to the grid, so you
can make the most of your solar energy.

Advanced tank temperature sensing and powerline communications technology allows intelligent home energy management with no additional cabling requirements.

Large Thermal Energy Storage PowerStore® holds 315 litres of water which is large enough for families and equates to approximately 13kWh^ of thermal storage capacity for your excess solar power.

A Water Heater Like No Other

Solahart PowerStore® is different to conventional water heaters in three important ways.

  1. It is designed to intelligently interact with your solar panels to divert excess solar power when it’s available for maximum efficiency.

  2. Unlike a standard water heater, it can work at varying power levels, so it is better suited to the variable power delivered from solar energy.

  3. It can heat water gradually to take advantage of the sunniest parts of the day.



See How it Works

Solahart PowerStore® Part 1: How Solar Power Works

Solahart PowerStore® Part 2: Heating Water With Solar Power

Solahart PowerStore® Part 3: Introducing PowerStore

¹Enhancing of your solar investment will vary depending upon the size of your solar power system, the amount of excess solar power available to the Solahart PowerStore system, your feed-in tariff and your hot water tariff.
