Solar Power System: Key Attributes

Key Features

Our new high-performance Solahart Silhouette panel, with striking all-black finish, is the ideal solution for Australian homes thanks to its innovative and premium cell technology. 25-Year Solahart Product Warranty for peace of mind, plus, 25-Year Performance Guarantee for long term returns.*Read more here.

The SolarEdge PV inverter is designed to work with the SolarEdge Power Optimizers that manage each solar panel separately. Consequently, the inverter is only responsible for DC to AC conversion which makes it a less complicated and more reliable solar inverter. A fixed string voltage ensures operation at the highest efficiency at all times, independent of string length and temperature.

A SolarEdge Hybrid Inverter enables you to combine a  SolarEdge Energy Bank battery

The SolarEdge Power Optimizer connects to a single panel to monitor and control its performance, individually. This level of control mitigates all types of panel mismatch losses, from manufacturing tolerances to partial shading and improves the performance of the PV system. It allows for more flexible system designs and maximum space utilisation.

  •  Compatible with the SolarEdge Energy bank and Tesla Powerwall Batteries
  •  Designed specifically to work with Power Optimizers
  •  Independent, panel-level management and monitoring
  •  More power generated from system



† Solahart Warranty Details:

  • Solar Panels: 25 years,
  • Inverter and Optimisers: 12 years,
  • Racking and Balance of System components: 5 years,
  • Labour: 5 years,
  • For full warranty details refer to the Solahart Owner’s Guide.

Solahart Platinum Optimised PV Systems Specifications

Solahart Solar Panel Specifications



Panel Electrical Characteristics
Maximum Power (Pmax)
Power Class
400W
0/+5W
Open Circuit Voltage (Voc) 45.30V
Short Circuit Current  (Isc) 11.14A
Maximum Power Voltage (Vmp) 37.13V
Maximum Power Current (Imp) 10.77A
Module Efficiency (%) ≥20.4%
Temperature Coefficients
PMPP
VOC
ISC
-0.34%/ K
-0.27%/ K
+0.04%/ K
Maximum System Voltage  ( IEC ) 1000V



Panel Specifications
Dimensions 1879 mm x 1045 mm x 32 mm
Weight 22.0 kg
Cell Type and configuration 6 x 22 monocrystalline solar half-cells
Glass 3.2mm thermally pre-stressed glass with anti-reflection technology
Back sheet Composite film
Frame Black Anodised Aluminium
Temperature range -40°C to + 85°C
Junction Box Protection Class IP 67, with bypass diodes
Connectors Multi-contact MC4, IP68
Part Number SOLAHART400S4
Solahart Warranty 25 years (5 years labour) on panels*





Solar Inverter Specifications



Inverter and optimiser specification details can be found by downloading the inverter data sheet. (link to go to next page when live)









1 For full details see Solahart Owner’s Guide and Installation Instructions. Conditions apply.

2 Rated STC power of the module. Module of up to +5% power tolerance allowed.

How Solar Power (PV) Systems Work

Solar power panels generate electricity from sunlight. The roof mounted solar panels are made up of many photovoltaic (PV) cells. These cells collect the sun’s light and convert the energy into DC electricity. This is fed through an inverter and converted to 240V AC electricity to power your home.

The amount of electricity you can produce depends on the number and efficiency of the panels, the size of the inverter and the amount of sunlight in your location. Your home remains connected to the electricity grid so when you generate more electricity than you need you can feed it into the grid or purchase more from the grid when you are not producing enough to meet your requirements.

The Science Explained

The amount of energy from the sun that falls on Earth's surface is enormous. All the energy stored in Earth's reserves of coal, oil, and natural gas is matched by the energy from just 20 days of sunshine. Outside Earth's atmosphere, the sun's energy contains about 1,300 watts per square meter. About one-third of this light is reflected back into space, and some is absorbed by the atmosphere (in part causing winds to blow).

By the time it reaches Earth's surface, the energy in sunlight has fallen to about 1,000 watts per square meter at noon on a cloudless day. Averaged over the entire surface of the planet, 24 hours per day for a year, each square meter collects the approximate energy equivalent of almost a barrel of oil, or 4.2 kilowatt-hours of energy every day. Deserts, with very dry air and little cloud cover, receive the most sun—more than six kilowatt-hours per day per square meter.

How does a solar cell turn sunlight into electricity?

The sun's light (and all light) contains energy. Usually, when light hits an object the energy turns into heat, like the warmth you feel while sitting in the sun. But when light hits certain materials the energy turns into an electrical current instead, which we can then harness for power. Solar technology uses large crystals made out of silicon, which produces an electrical current when struck by light. Silicon can do this because the electrons in the crystal get up and move when exposed to light instead of just vibrating in place to make heat. The silicon turns a good portion of light energy into electricity.

The most important components of a PV cell are two layers of semiconductor material generally composed of silicon crystals. On its own, crystallized silicon is not a very good conductor of electricity, but when impurities are intentionally added—a process called doping—the stage is set for creating an electric current. The bottom layer of the PV cell is usually doped with boron, which bonds with the silicon to facilitate a positive charge (P). The top layer is doped with phosphorus, which bonds with the silicon to facilitate a negative charge (N).

When sunlight enters the cell, its energy knocks electrons loose in both layers. Because of the opposite charges of the layers, the electrons want to flow from the n-type layer to the p-type layer, but the electric field at the P-N junction prevents this from happening. The presence of an external circuit, however, provides the necessary path for electrons in the n-type layer to travel to the p-type layer. Extremely thin wires running along the top of the n-type layer provide this external circuit, and the electrons flowing through this circuit provide the cell's owner with a supply of electricity.

How PV Cells Work

Most PV systems consist of individual square cells averaging about six inches on a side. Alone, each cell generates very little power (approximately four watts), so they are assembled together panels encased in glass and plastic to provide protection from the weather. These panels are either used as separate units or grouped into even larger arrays to form a solar power (PV) system.


Solar Power System Design

The Solahart Solar Power system is comprised of two main components; a string or array of photovoltaic panels and an inverter. The photovoltaic (PV) panels transform solar radiation into electrical energy in the form of direct current (DC). In order to utilise this energy and feed it back into the grid, the direct current is transformed into alternating current (AC) by the inverter. This conversion is also known as DC to AC inversion.

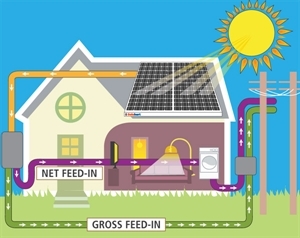

The alternating current generated by the inverter is fed into the main switchboard, which in turn is connected to the electricity grid. If the energy generated exceeds that required by property demands, your electrical network operator may allow the difference to be directly injected into the grid and become available to other users. Energy injected into the grid can be measured by electricity network operators as either gross (everything generated) or nett (excess generated). Injected energy may or may not be purchased by the local electrical network operator according to national and local standards, and regulations.

PV Panel Orientation & Inclination

To maximize system output, install panels at optimum orientation and inclination (tilt) angles. The specifics of this will depend on the installation location and must be calculated by a qualified system designer. The ideal angle for mounting a panel should result in the sun’s rays falling perpendicular (i.e. at a 90° angle) to the panel surface.

Panels should be installed in a shade free position. Even minor or partial shading of the panels/array will reduce system output. A panel is considered shade free when it is both:

  • Free from shade or shadows all year round.
  • Exposed to several hours of direct sunlight, even during the shortest days

Brochures

Solahart Silhouette Solar Panel (400W): Download

Solahart Solar Power (PV) SolarEdge  Inverters Download

Solahart Solar Power (PV) SolarEdge DC Optimisers: Download

Installation Manuals

Solahart400S4 Panel's Installation Instructions: Download

Solar Incentive Forms

Small-scale Technology Certificate Assignment Form: Download

Warranty

Solahart Warranty: Download
